Schukat Smartwin Display Serie
|
|
 |
|
|
|
|
| Display-Typ / Bestellnr. | SMMT024240320H | SMMH035320240K | SMMH043480272G | SMMH050800480H | SMMH0701024600S |
| Diagonale | 2,4" | 3,5" | 4,3" | 5" | 7" |
| Auflösung | 240x320 | 320x240 | 480x272 | 800x480 | 1024x600 |
| Touch verfügbar? |  |
|
|
|
|
| Empfohlene Steuerplatine | SLD_C_W_S3 | SLD_C_W_S3 | SLD_C_W_S3 | SLD_C_W_S3_BT817 | SLD_C_W_S3_BT817 |
| SLD_C_W_S3_BT817 | SLD_C_W_S3_BT817 | HDMI2RHB | HDMI2RHB | ||
| HDMI2RHB | SLD_C_W_P4_C6 | SLD_C_W_P4_C6 | |||
| SLD_C_W_P4_C6 | |||||
| Anwendung: HMI | |
|
|
|
|
| Video |  |
S3 nein, sonst ja | S3 nein, sonst ja | |
|
ESoPe Plattform Control Boards für Displays
|
|
 |
 |
 |
|

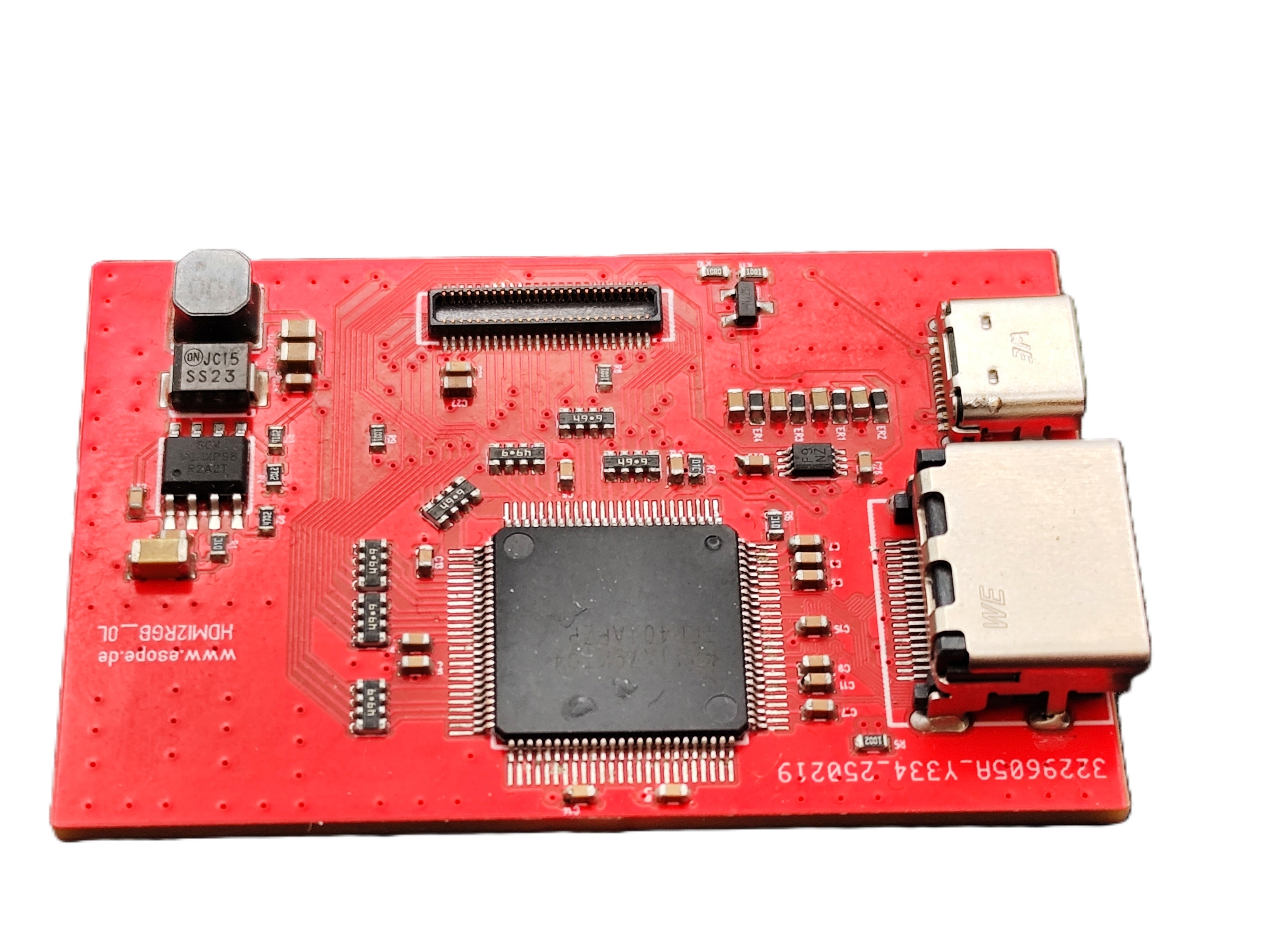

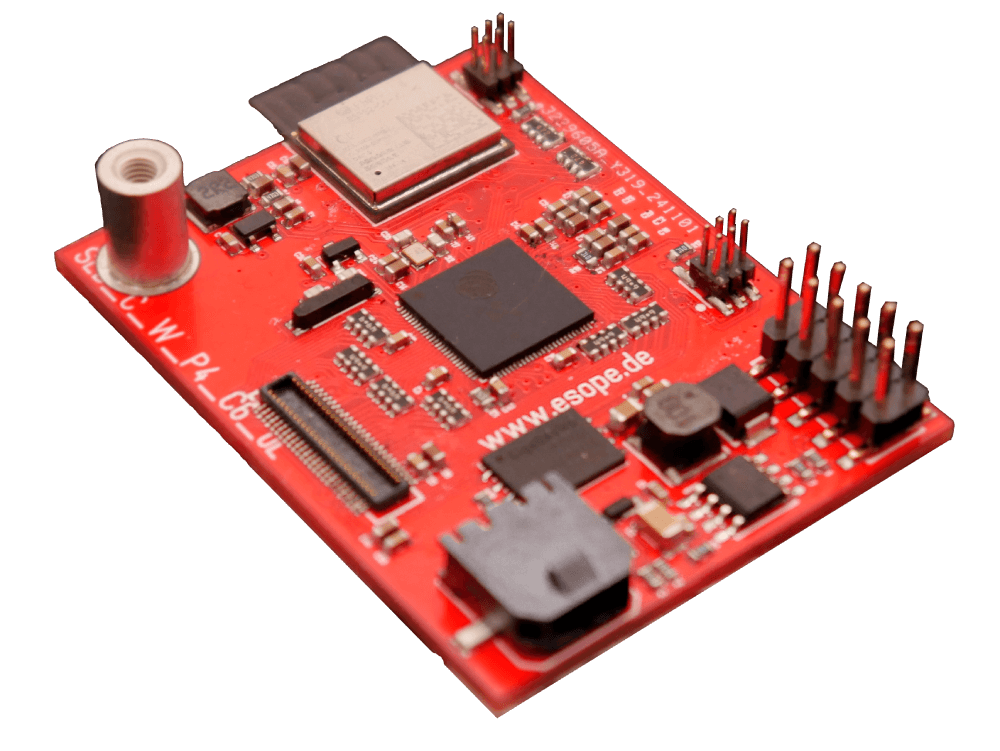

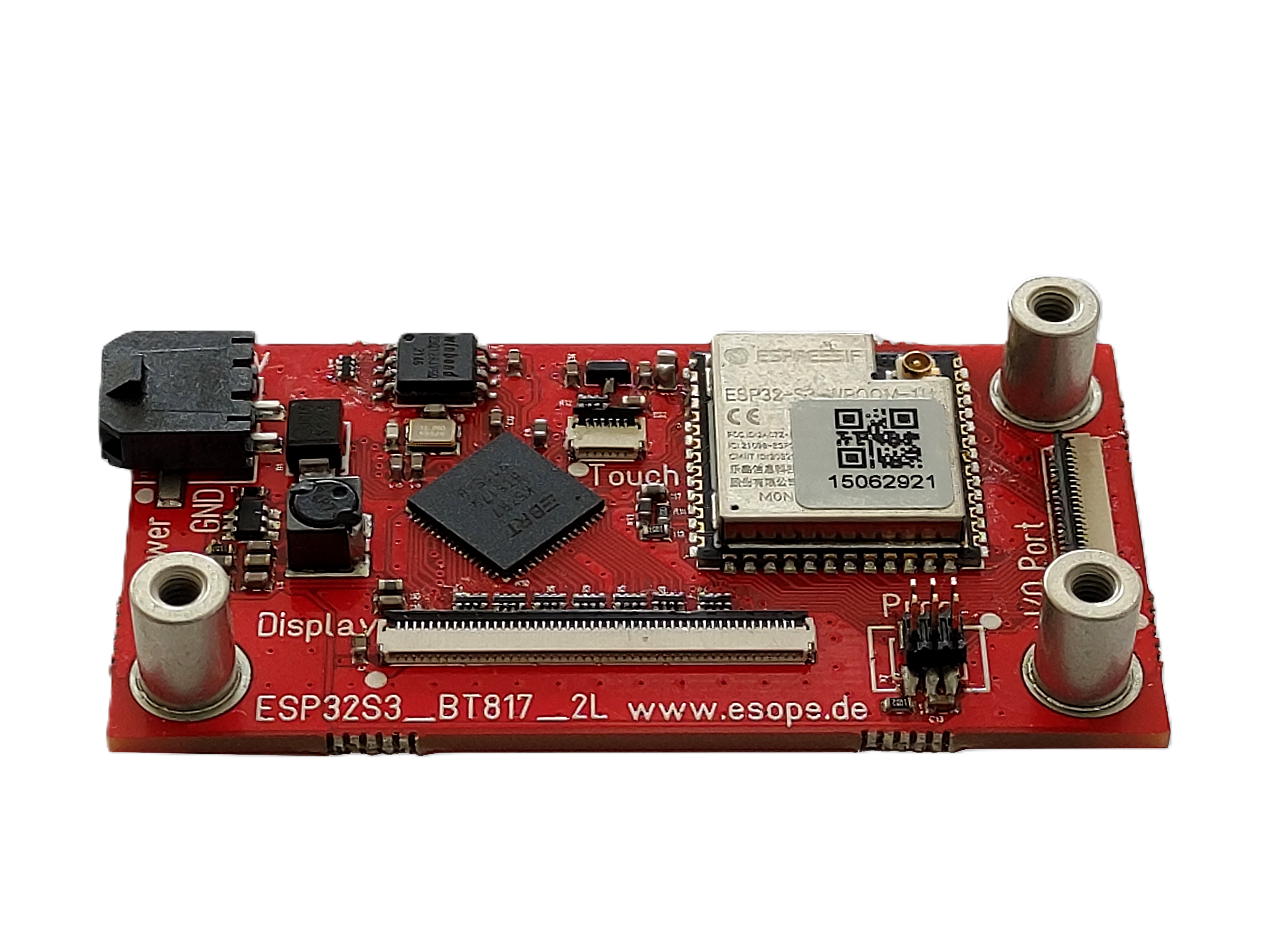

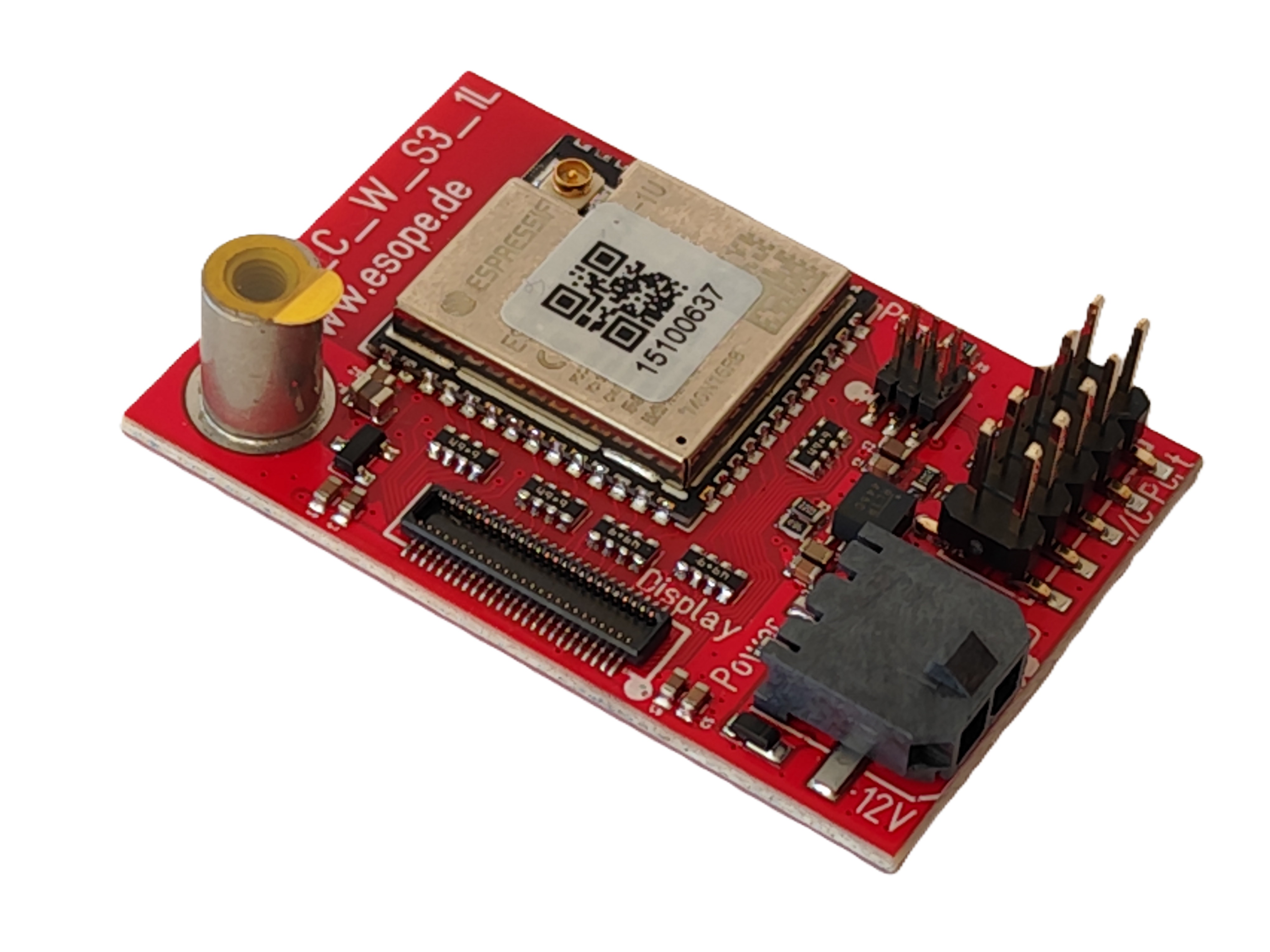

| Board-Typ / Bestellnr. | SLD_C_W_S3 | SLD_C_W_S3_BT817 | HDMI2RHB | SLD_C_W_P4_C6 |
| Geeignet für Displaygrößen | 2,4"-4,3" | 2,4-7" | 4,3-7" | 3,5-7" |
| Eingesetzte Controller | ESP32-S3-WM-1-N16R8 | ESP32-S3-WM-1-N16R8 | TFP401APZPR | ESP32-P4 |
| BT817Q | ESP32-C6-MINI-1-N4 | |||
| Interfaces | Sio / GPIO | SIO / GPIO | HDMI | Sio |
| WiFi | |
|
|
|
| Anwendung: HMI | |
|
|
|
| Video | |
|
|
|
| Zubehör | Hersteller | Typ | Herstellernr. |
| Display Steckverbinder | Hirose | DF23C-50DP | DF23C-50DP-0.5V(92) |
| Power Steckverbinder | Würth | MPC3 1x2 | 662002013322 |
