Schukat Smartwin Display Series

Display-Type / Order No.	SMMT024240320H	SMMH035320240K	SMMH043480272G	SMMH050800480H	SMMH0701024600S
Diagonal	2,4"	3,5"	4,3"	5"	7"
Resolution	240x320	320x240	480x272	800x480	1024x600
Touch available?
Recommended Control Board	SLD_C_W_S3	SLD_C_W_S3	SLD_C_W_S3	SLD_C_W_S3_BT817	SLD_C_W_S3_BT817
		SLD_C_W_S3_BT817	SLD_C_W_S3_BT817	HDMI2RGB	HDMI2RGB
			HDMI2RGB	SLD_C_W_P4_C6	SLD_C_W_P4_C6
			SLD_C_W_P4_C6
Application: HMI
Video		S3 no, otherwise yes	S3 no, otherwise yes

ESoPe Platform Control Boards for Displays

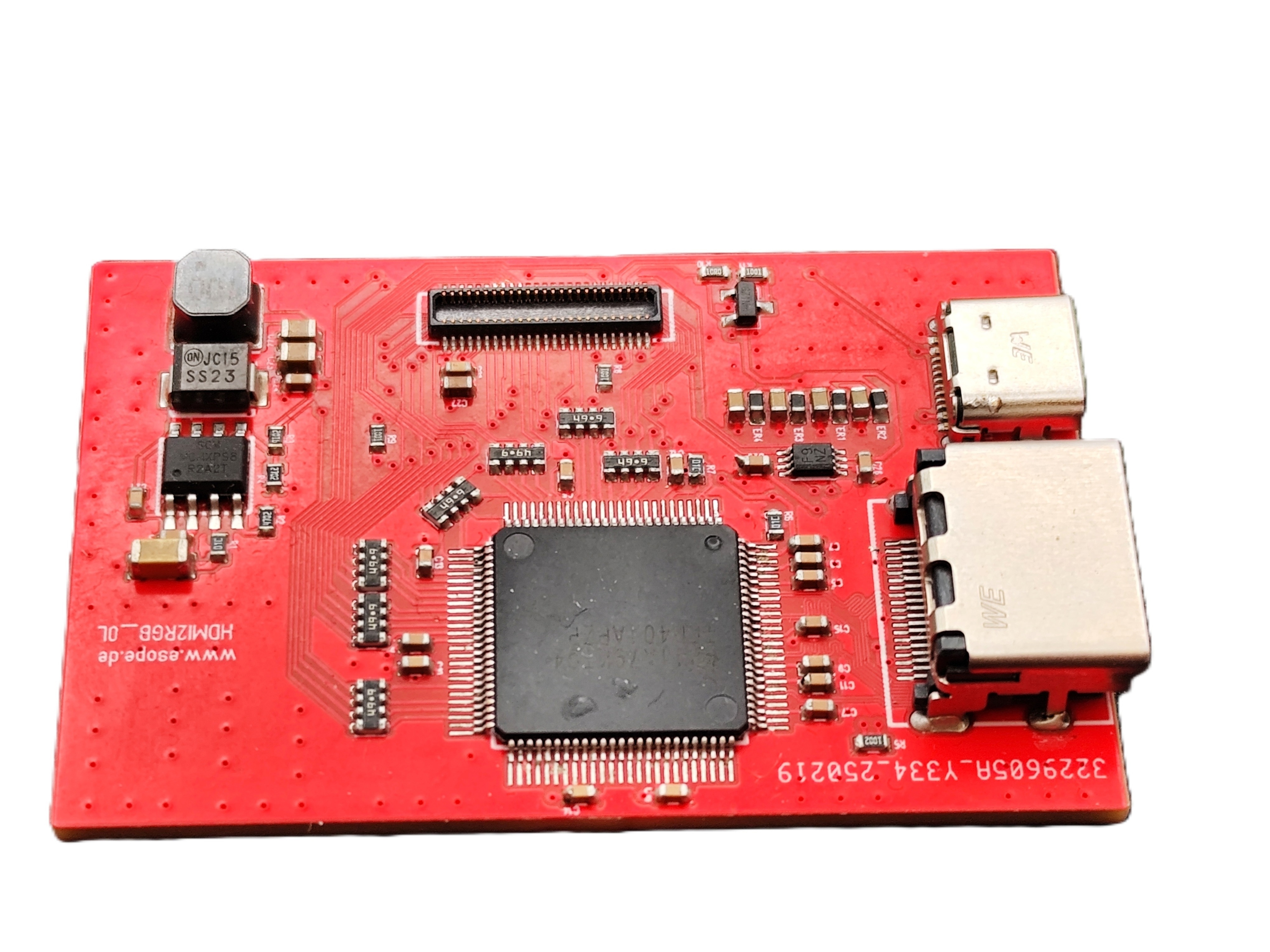

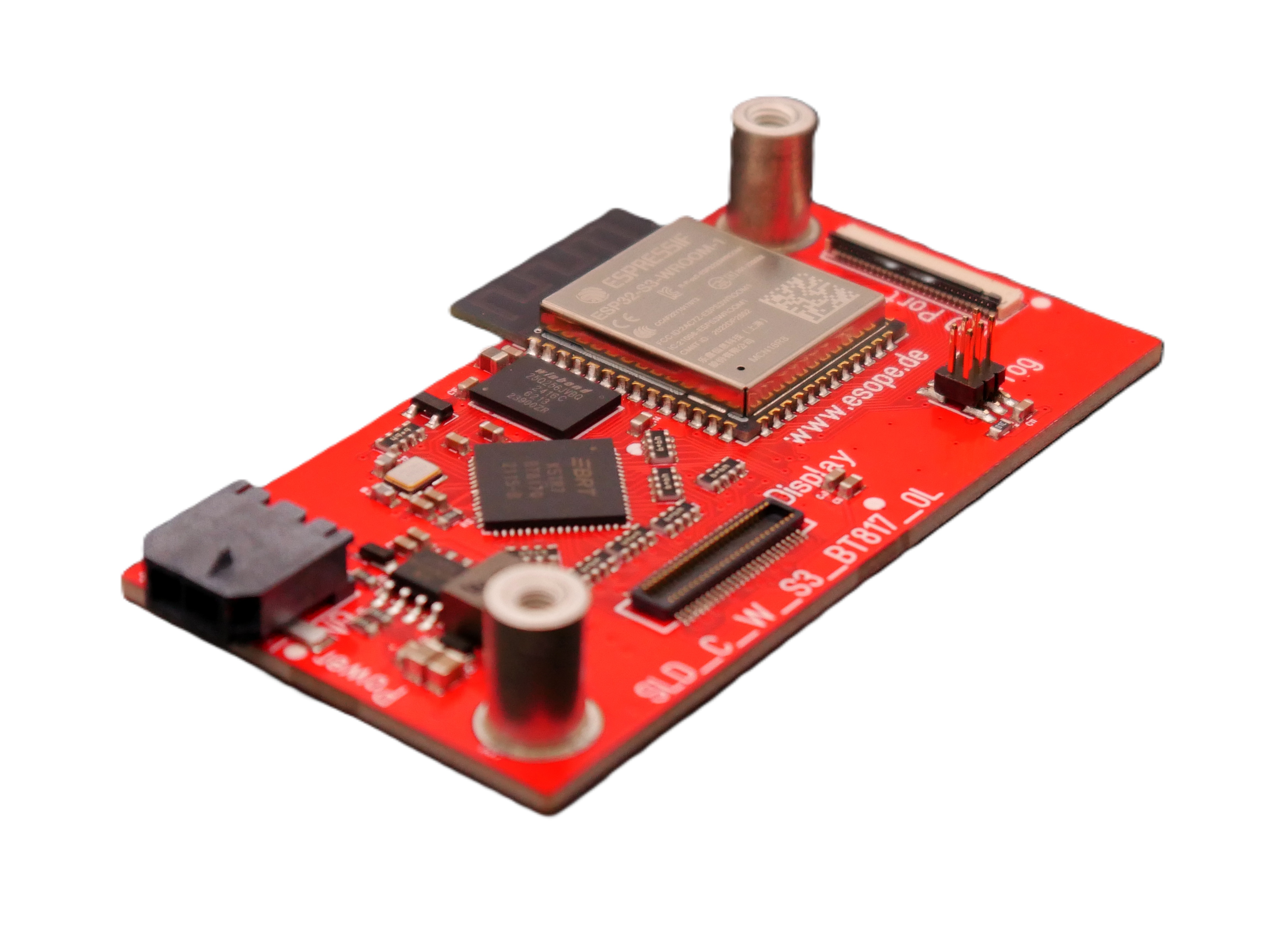

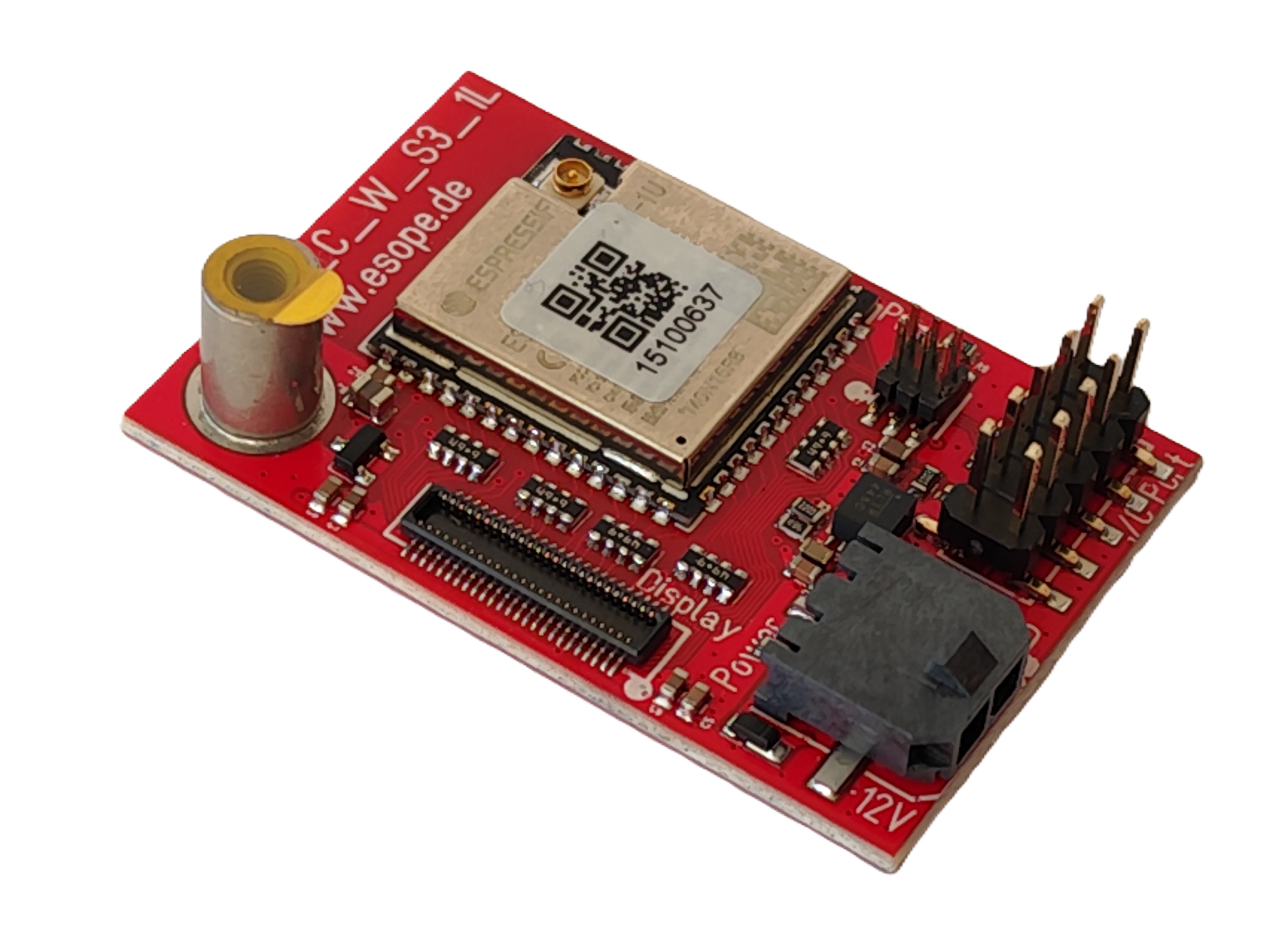

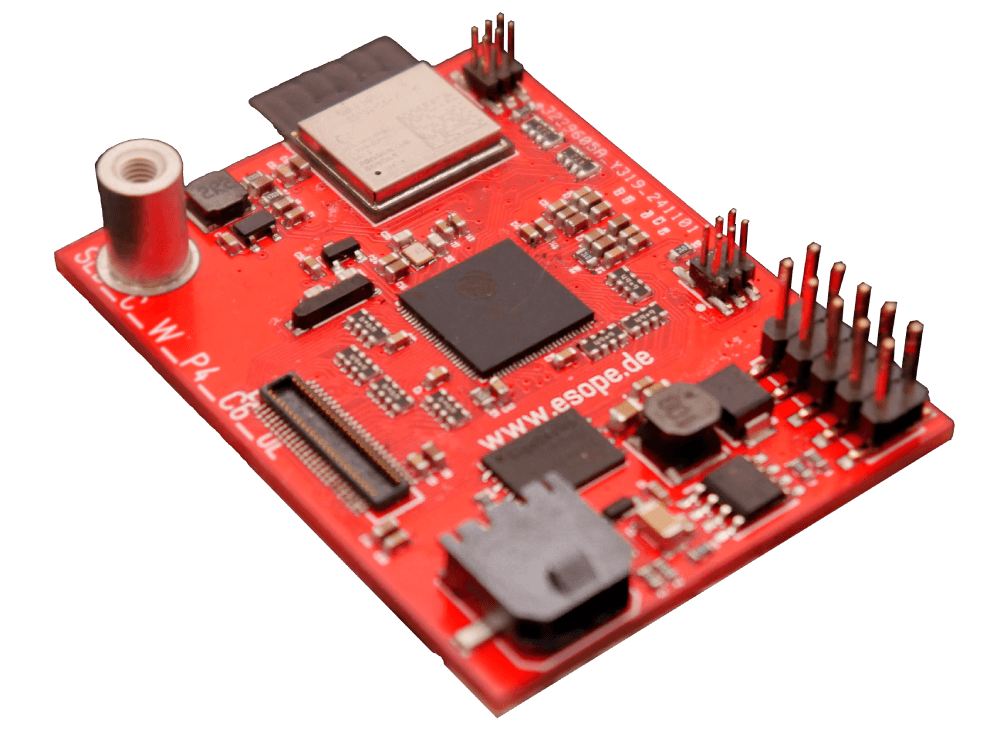

Board-Type / Order No.	SLD_C_W_S3	SLD_C_W_S3_BT817	HDMI2RGB	SLD_C_W_P4_C6
Suitable for Display Sizes	2,4"-4,3"	2,4-7"	4,3-7"	3,5-7"
Used Controller	ESP32-S3-WM-1-N16R8	ESP32-S3-WM-1-N16R8	TFP401APZPR	ESP32-P4
		BT817Q		ESP32-C6-MINI-1-N4
Interfaces	Sio / GPIO	SIO / GPIO	HDMI	Sio
WiFi
Anwendung: HMI
Video

Accessories	Manufacturer	Type	Manufacturer No.
Display Connector	Hirose	DF23C-50DP	DF23C-50DP-0.5V(92)
Power Connector	Würth	MPC3 1x2	662002013322
